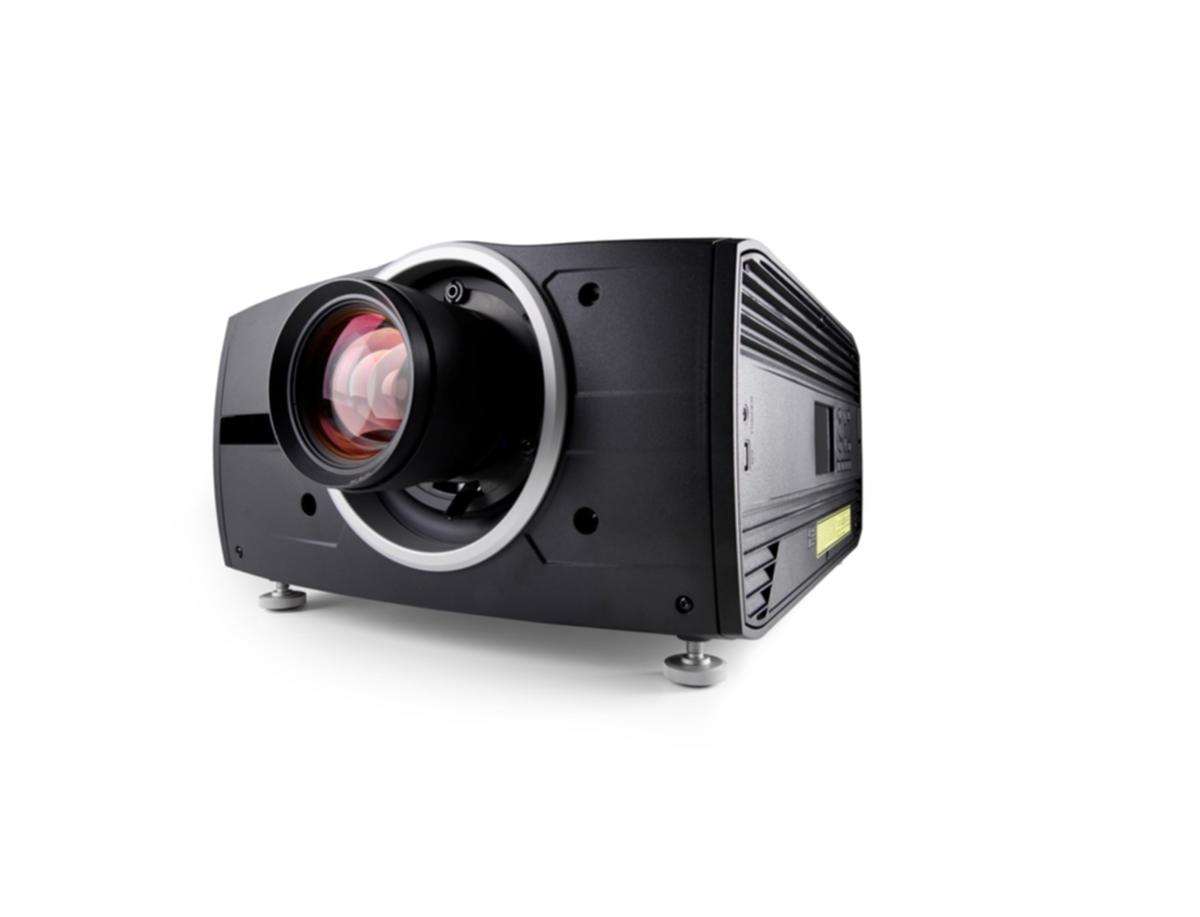

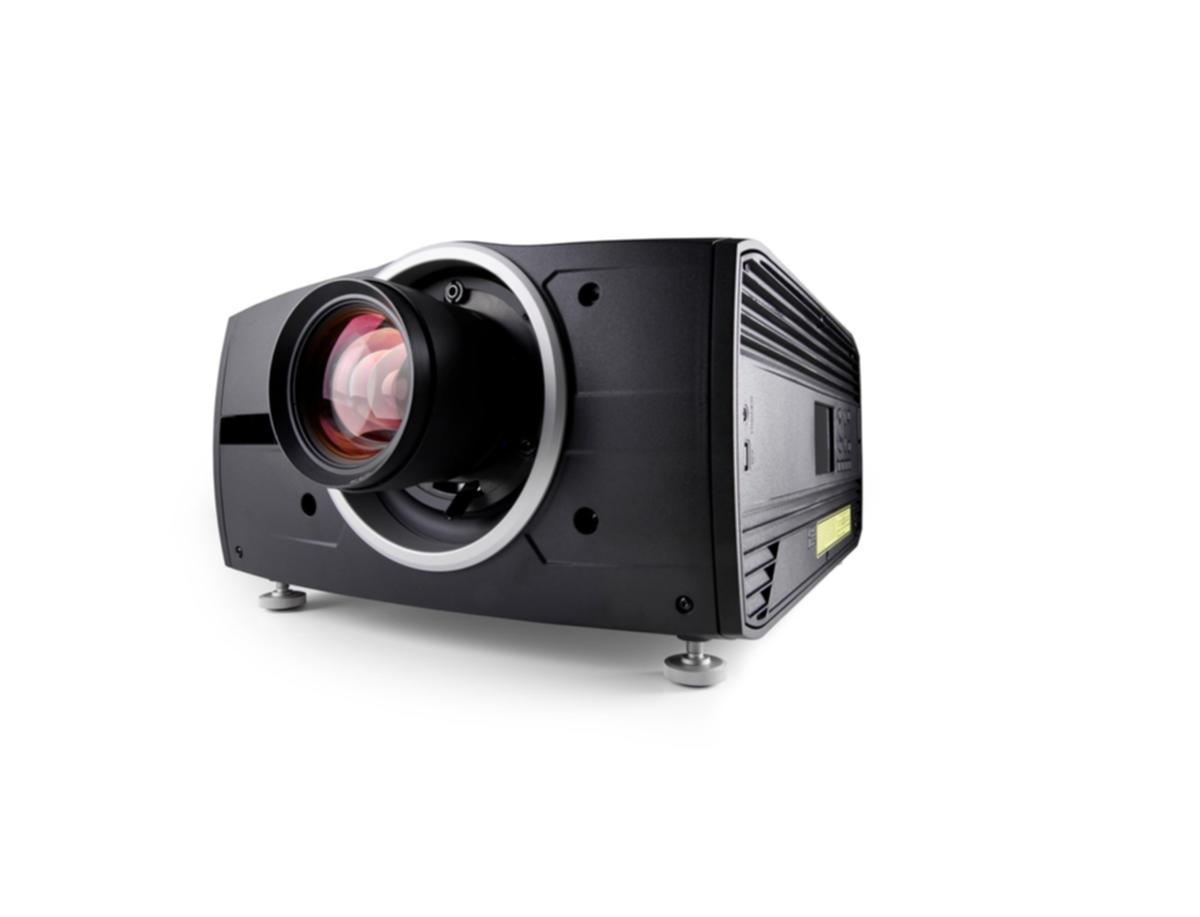

F70-4K6

4K UHD laser phosphor projector
  • 4K UHD resolution
  • Durable and robust for 24/7 operation
  • High brightness
  • Long lifetime (up to 60,000 hours)

The F70-4K6 is a laser phosphor projector with native WQXGA and up to 4K UHD resolution. The F70 series answers to the simulation and ProAV market's specific requirements - including high robustness, longer lifetime, and laser-sharp image quality. Projectors that do not meet these demands don't last long or require frequent and expensive maintenance.

Fitted with protective metal, Barco’s F70 withstands a motion platform's rapid and sudden movements, making it the perfect choice for theme parks. With a lifetime of up to 60,000 hours (depending on the mode of operation), the F70 is one of the most durable projectors on the market and is ready for service in the most demanding environments.

Designed for 24/7 use

The F70 is designed for performance and reliability. Capable of running in any orientation, the F70 projectors offer more installation flexibility. All of Barco's F-series projectors feature the same high-resolution FLD and FLD+ lenses so that you can reuse your lenses.

Brighter, better

With brightness levels of 5,000 lumens, the F70-4K6 is one of the brightest single-chip DLP projectors on the market with 4K UHD resolution. With the Constant Light Output (CLOTM) functionality, the projector produces constant brightness and color over a long period of time. And thanks to Barco’s unique and proprietary Single Step Processing (SSPTM) technology, the F70 achieves 4K UHD resolution in only one step. So, you benefit from a sharper image and much higher overall image quality with less latency.

Specifikációk

Brightness 5,000 lumens
Contrast ratio 1800:1 sequential, 50,000:1 dynamic
IR for NVG yes
Brightness uniformity 90%
Aspect ratio 16:10
Projector type 1DLP laser phosphor
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native)
Lens type FLD/FLD+
Optical lens shift Up to 134% lens shift, depending on lens.
Motorized zoom, focus, vertical and horizontal shift, iris* and shutter.
Color correction P7 RealColorTM
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime Up to 60,000 hours, depending on mode of operation
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D*
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs HDSDI
2x DP1.2
2x dual link DVI-I
HDBaseT upgradable
HDMI2.0 upgradable
RJ 45 Ethernet
DMX in/out*(upgradable)
RS232 in
2x USB
12v out
Input resolutions Including and up to:
3,840 x 2,400 @ 60Hz
3,840 x 2,160 @ 60Hz
4,096 x 2,160 @ 60Hz
2,560 x 1,600 @ 120Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection IR, RS232, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 1,100 W Max.
BTU per hour Max 4,000 BTU/h
Noise level (typical at 25°C/77°F) 36 dB(A)
Operating temperature 10 - 40 °C (sea level)
Storage temperature -20 to 60 °C
Operating humidity 20 - 80% RH
Storage humidity 10 - 90% RH
Dimensions (WxLxH) 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in
Weight 37 kg / 81,5 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A and cNus
Warranty Limited 3 years parts and labor. Extendable up to 5 years
Notes * SW upgradable. Please contact an authorized Barco representative for details.
