OverView MVL-721

Industry-standard 70” full HD 16:9 LED video wall


With the OverView MVL series, Barco has launched a display range that has a well balanced set of essential features, perfectly fitting the standard requirements. All this comes without any compromise in quality, and with a special focus on limiting both the initial purchase as the runtime cost.

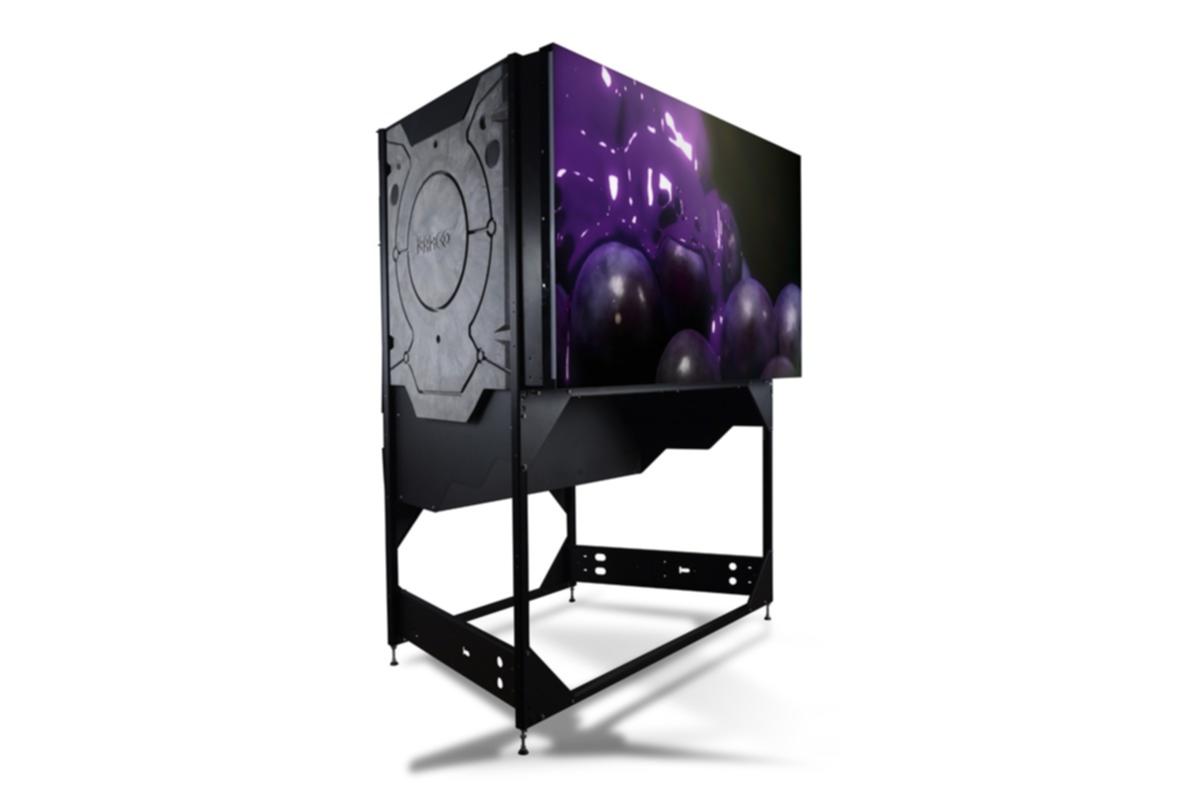

The OverView MVL-721 is an easy to operate 16:9 LED-lit projection module that has been designed to offer the typical detail, brightness, and features in full HD resolution for control rooms where space is not a constraint.

Unmatched LED lifetime

Barco’s unique cooling system significantly reduces the temperature of the LEDs. This not only prolongs the lifetime of the LEDs (>80,000 hrs), but also allows for durably higher brightness levels. The long LED lifetime guarantees a great uptime and very low overhead costs. The latest LED technology ensures that the power consumption is 30% lower than comparable products.

Comfortable viewing experience

To ensure good wall uniformity in terms of color and brightness levels, the OverView MVL-721 comes with Barco’s Sense5 automatic calibration system. This system works with an advanced color sensor that continuously measures the primary color levels of the entire wall, and adjusts white point and color when needed. This results in a significantly more accurate cube to cube uniformity, over the complete runtime. Furthermore, the module’s robust structure makes the OverView MVL-721 suitable for use in industrial environments.



Aspect ratio 16:9Full HD resolutionEasy installationLong lifetime LED technologyLow noise operation3 x 10bit optical dimming24-7 operation



Features

Key characteristics

  • 6x redundancy of LEDs (per color)
  • Sense5 automatic white point and primary colors calibration, for brightness and color stability
  • Unique cooling system ensures longer LED lifetime
  • Low power design
  • Wide color gamut
  • Less disposables, less waste
  • 16:9 aspect ratio

Specifikációk

Resolution1920x1080
Brightnesson-screen: 350 Cd/m²
On-screen contrast1,200,000:1 (dynamic)
Display technologyDLP rear projection
Color gamutEBU
White point6500k, 3200k fix
Brightness uniformity>95%
ScreenMid Gain Type, 180° viewing angle
Screen gap< 1,5 mm | 0.06" (@25°C)
< 0.2 mm | 0.0079" (at higher temperatures)
Color stabilitySelf calibration with Sense5 based on advanced color sensor
Dimensions
  • Diagonal: 70"
  • Width: 1550 mm | 61.0"
  • Height: 872 mm | 34.3"
  • Depth: 1010 mm | 39.8"
  • Weight: 104 kg | 228 lbs
Light sourceLight source 6x redundancy for each of 3 LEDs
Light source lifetime> 60,000h (typ.)
> 80,000h (eco)
MTBF LED: > 500,000h
Conditions for operation10°C-40°C, 80% humidity (nc)
Input voltage90 – 240 V, 50-60Hz
Power90W (eco)
150W (typ.)
180W (max)
Heat dissipation310 BTU/h (eco)
510 BTU/h (typ.)
610 BTU/h (max)
Signal input/outputDual link DVI in / Dual link DVI out
(Optional input redundancy)
Pixel clock320 MHz
Input frequency24 – 62 Hz
Genlock49 – 61 Hz
Signal processingLoop through up to 10 cubes
Cropping / upscaling
Direct ethernet accessBuilt-in web server
Graphical user interfaceAll settings and operational parameters
Third party interfaceWEB service API (optional)
Warranty2 years
