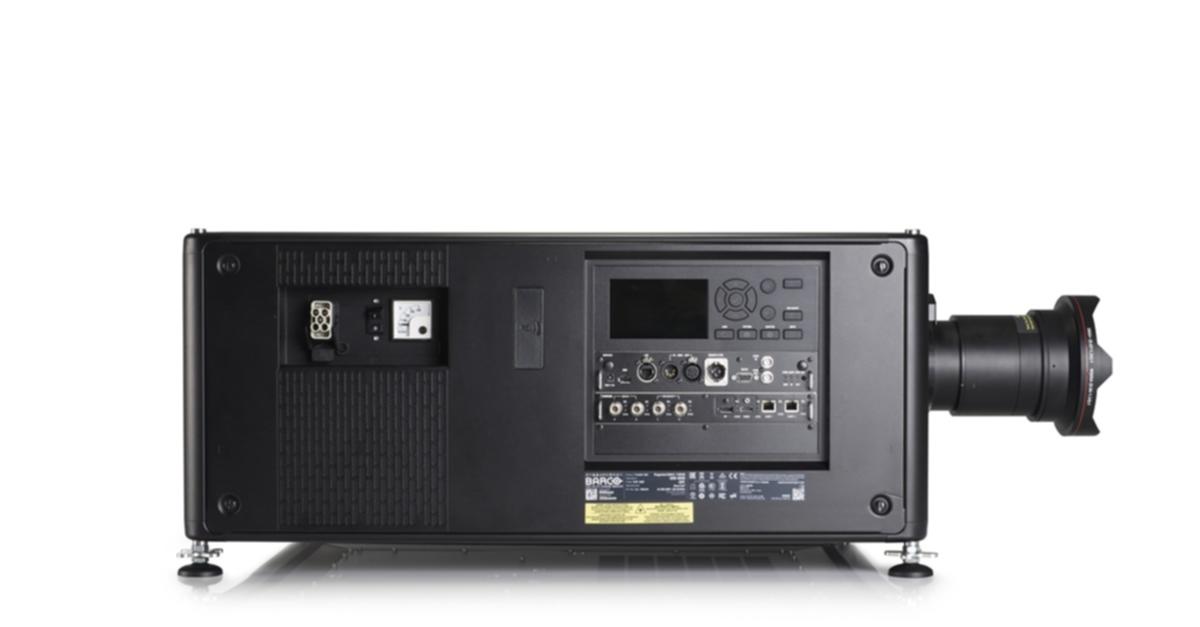

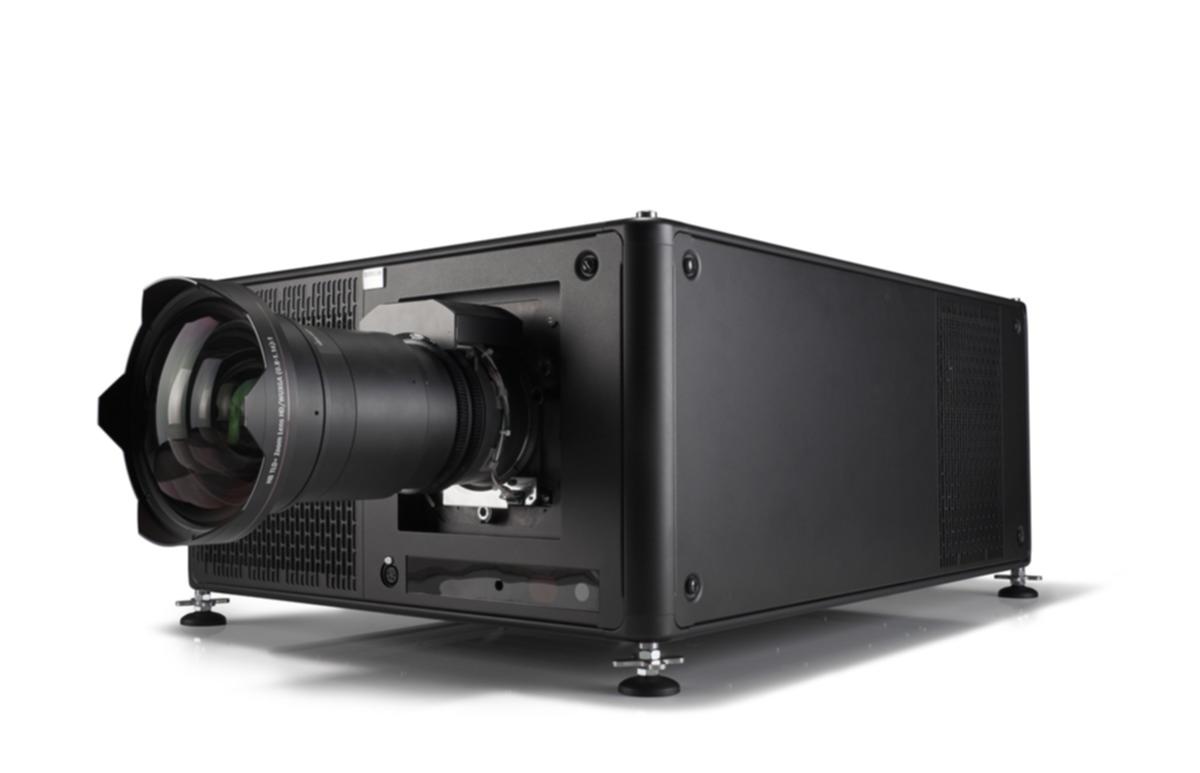

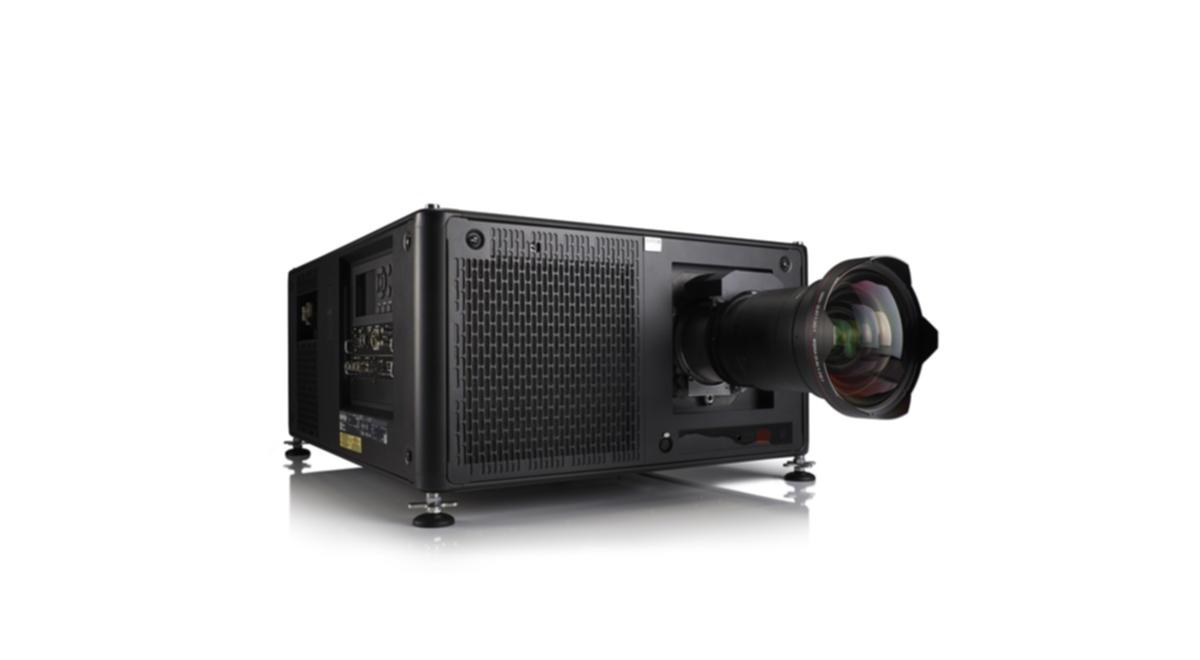

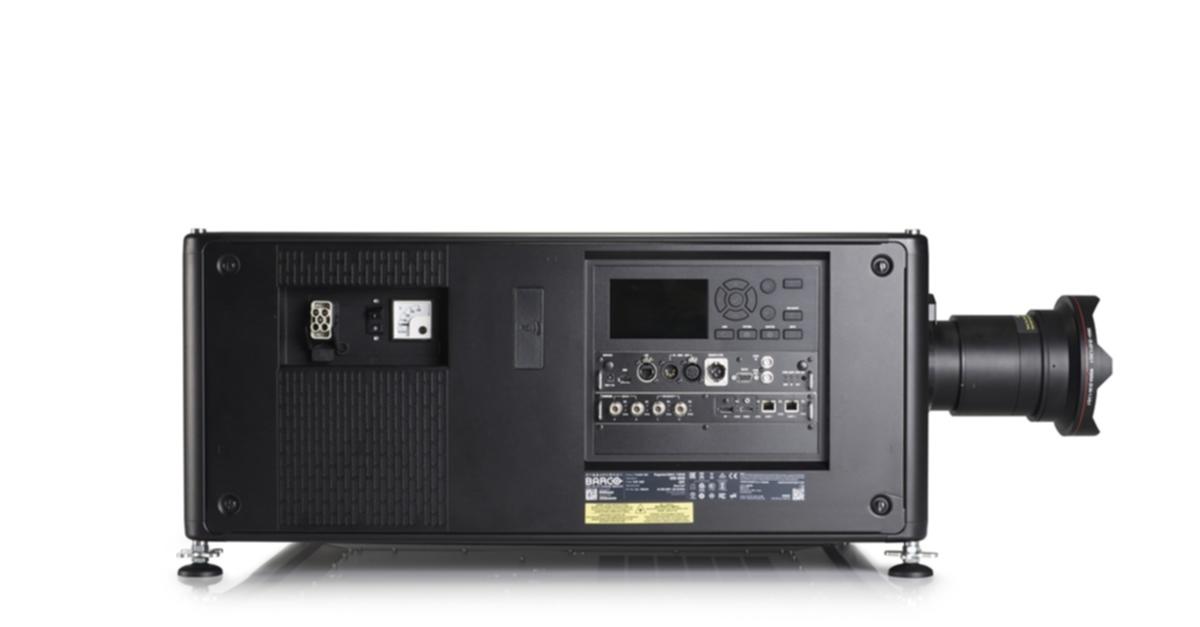

UDX-4K32

31,000 lumens, 4K UHD, 3-chip DLP laser phosphor large venue projector
  • Quicker installation, lower costs, optimal asset management
  • Unmatched colors, 4K resolution, and best-in-class processing
  • Unbelievable experiences thanks to exceptional performance
  • 24/7 operation

The UDX range delivers stunning experiences and savings on installation and shipping time, reducing costs significantly. The most compact, high-brightness laser projectors with integrated cooling on the market, the UDX projectors bring reliable and razor-sharp 4K images to every type of event and venue.

The UDX-4K32 features 4K UHD resolution and 31,000 lumens light output to ensure flawless shows with accurate colors at all times. The Constant Light Output (CLO) functionality also guarantees peace of mind by providing constant brightness and color over time. The UDX platform offers the widest color spectrum in the industry. Without compromising on brightness, the UDX color quality matches the renowned Xenon quality and outperforms the Rec. 709 color space.

Cut costs with laser projection

Thanks to their laser phosphor light source, lamp-related costs and maintenance as well as image flicker, belong to the past. The UDX series delivers a long lifetime and high reliability to ensure minimum downtime. The UDX's compact and rugged design allows you to reduce shipping and labor costs. The modular components can be removed quickly to limit servicing time. You can also reuse your TLD+ lenses

Pick your brightness and resolution

The unique FLEX² feature will allow you to tune and lock your brightness and resolution to a specific show. You'll now need less projectors to cover a wider range of brightness levels and resolutions.

Faster processing for sharper images

The Barco Pulse 4K electronics offer an intuitive interface and flexible, user-friendly, embedded control software. Its Single Step Processing (SSP) allows for sharper images and less latency.

Specifikációk

Projector type 4K UHD 3-chip DLP digital projector
Technology 0.9" DMD™ x3
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native)
Brightness 31,000 (WQ)/30,000 (4K UHD) center lumens* / 30,000 ansi lumens
Contrast ratio 2,000:1
Brightness uniformity 95%
Aspect ratio 16:10
ScenergiX Horizontal and vertical edge blending
Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Optical lens shift V: -100% to +130% / H: +/- 40% on zoom lenses (memorized)
Color correction P7
Light source laser phosphor with inorganic phosphor wheel
Light source lifetime 25,000 hrs
Optical dowser Digital
Picture-in-picture Two sources simultaneously
Orientation 360°
Sealed DLP™ core standard
DMX 512 standard*
WARP Direct adjust OSD + toolset
Image processing Embedded warp & blend
Keystone correction Yes
Integrated web server Yes
CLO (constant light output) Standard
3D Active eye wear (optional), passive circular (optional); 3 flash up to 200Hz*
Inputs Single HDBaseT; HDMI 2.0 (HDCP 2.2); DP 1.2 (HDCP 1.3); Quad SDI/HDSDI/dual HDSDI/6G/BarcoLink
Optional Inputs Quad DP1.2
Input resolutions From NTSC up to 4K (4,096 x 2,160)
Max. pixel clock 600 MHz
Software tools Projector Toolset + Android** app + iOS** app
Control XLR wired + IR, RS232, Wifi**, GSM** (opt)
Network connection 10/100 base-T, RJ-45 connection, Wifi** (optional)
Power requirements 120-160 V (reduced power) / 200-240V (+/- 10%), 20A, 50-60Hz
Max. power consumption 2,900W nom/3,100W max / STBY less than 10W
Noise level (typical at 25°C/77°F) 52dB(A)
Operational ambient temperature 0-40°C / 32°-104°F
Operational humidity 0-80% (non condens)
Dissipation BTU Max. 9,895 BTU/h
Dimensions (WxLxH) 660 x 830 x 350 mm / 25.98 x 32.67 x 13.77 inches
Shipping Dimensions (LxWxH) 1,200 x 800 x 685 mm / 47.24 x 31.49 x 26.96 inches
Weight 92kg (202 lbs)/shipping weight from factory: 110kg (242 lbs)
Standard accessories Power cord, wireless/XLR wired rugged remote control
Certifications Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
Warranty 3 years
+/- 10%
