X3

16x8 video wall processor

● Scalable videowall processing for large videowall with up to 8 displays or more

● Card frame videowall processing system available with 6 slots

● Scalable, field-expandable systems

● High speed, dedicated video/graphic bus delivers real-time performance, each channel up to 4.25Gbps

● Seamless switching between the inputs and display windows or layers

● Multiple cascade to create un-limit real time display resolution

● Local control panel as option

● Upload and display stored images

● Output max supports 16 layers operation, and single output max supports 4 layers

● Input module max supports 4 layers operation

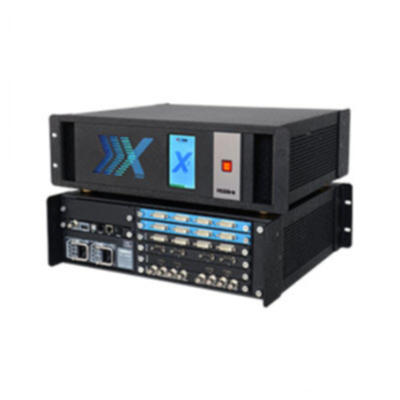

X3, part of the RGBlink Universal Processor range, is a scalable, expandable videowall processor that is dynamically configurable across a wide range of modern display applications. Features high performance video scaling with one or more videos able to be displayed across a display surface of up to eight output displays..

X3 has four input slots allowing up to sixteen inputs to be install. Two slots and up to eight outputs may be fitted. All inputs and outputs are modular with accepting RGBlink SmartSlot modules including 3G-SDI, HDMI, DVI, DisplayPort, Composite, H.264 and USB Media. Multiple X3 processors can be cascaded to create very large display arrays. A dedicated, high-speed video/graphic bus maintains real-time performance even regardless of the signal load or type.

While X3 is ideal for videowall continuous display environments, the processor is truly multi-application with operation modes including Videowall, Presentation, Matrix, 3D and more. All switching is seamless

Control and configuration is undertaken interactively via RGBlink XPOSE or T Series control consoles.

Specifikációk

Connectors
Input
4 slots, up to 16 inputs
Select from:
DVI |HDMI | 3G-SDI | USB Media | CVBS | H.264
4K@30 (DVI, HDMI, DisplayPort)
4K@60 (DVI, HDMI, DisplayPort)
Output
2 slots, up to 8 inputs
Select from:
DVI | HDMI | 3G-SDI | H.264
Genlock
BNC: BlackBurst (Y) In
HDMI: Digital Reference In
Communication
RJ45: TCP/IP
RJ11: Serial
USB-B: Serial
Power
Voltage
AC 85 ~ 264V 50/60Hz
Max Power
100W
Environment
Temperature
0°C~40°C
Humidity
10%~85% RH
Physical
Dimensions
Device: 486mm x 387mm x 135mm
Packed: 635mm x 545mm x 275mm
Weight
Device: 12.3kg
Packed: 20.4kg
