Size: 4.8 x 68.6 x 9.6 cm

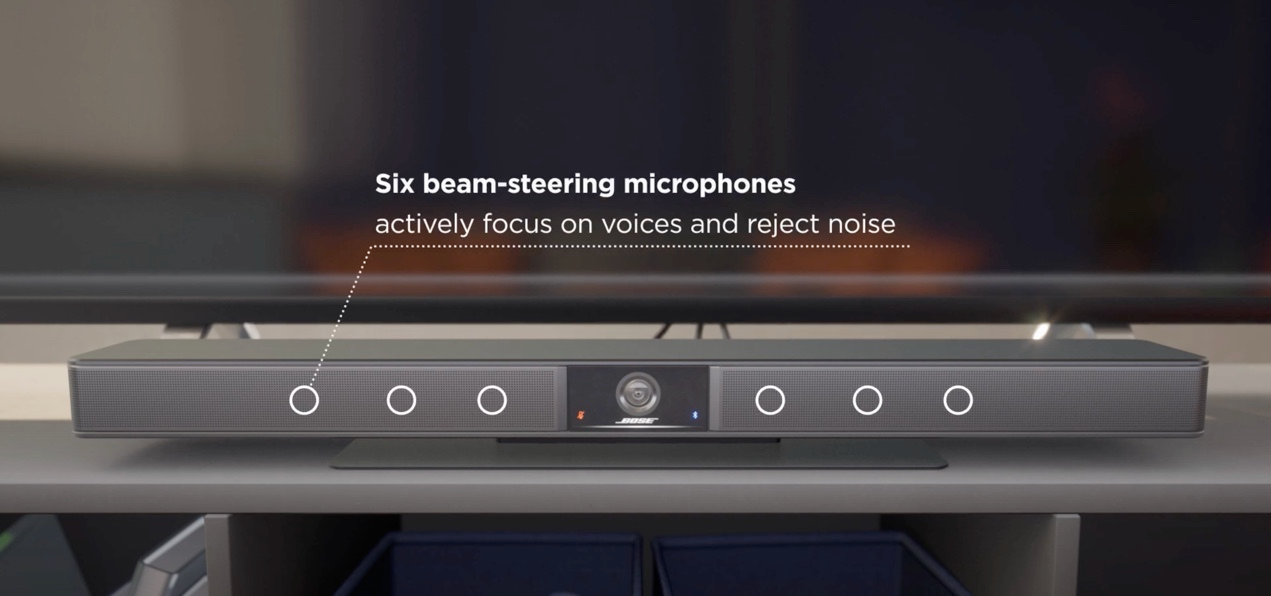

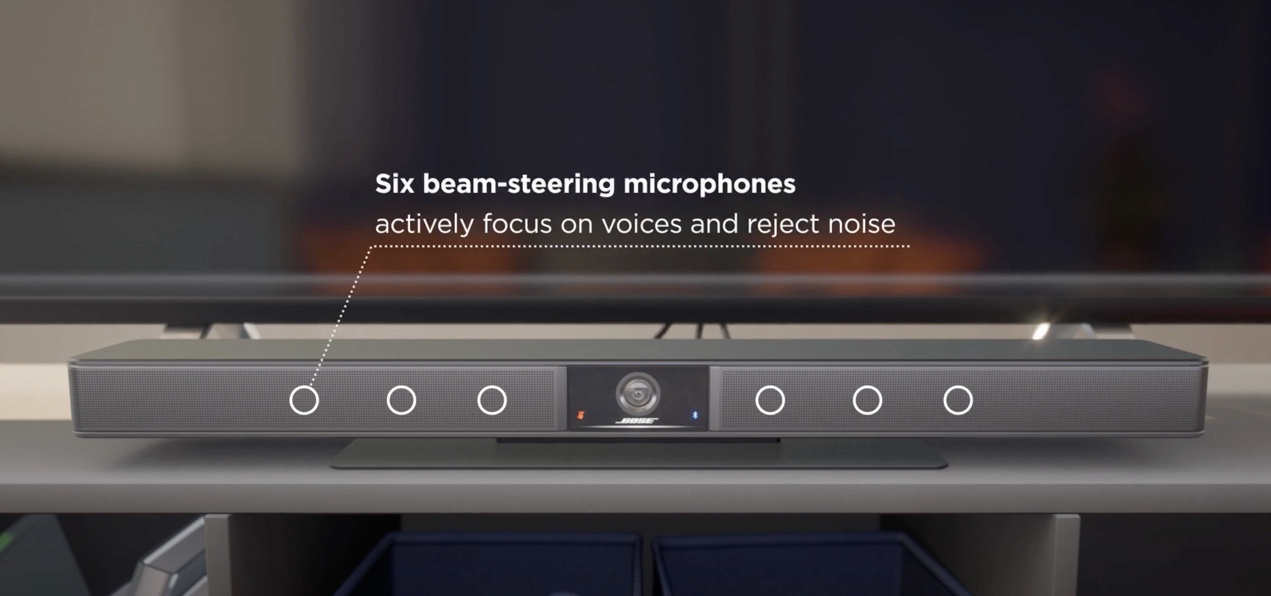

Microphone Setup
Microphones | 6 |
Frequency Response | 20 Hz to 15 kHz |
Pickup Range | 20' / 6 m |
Beamforming | Static and Dynamic Adaptive Beamforming |
Noise Cancellation | Noise Suppression and Stereo Acoustic Echo Cancellation |

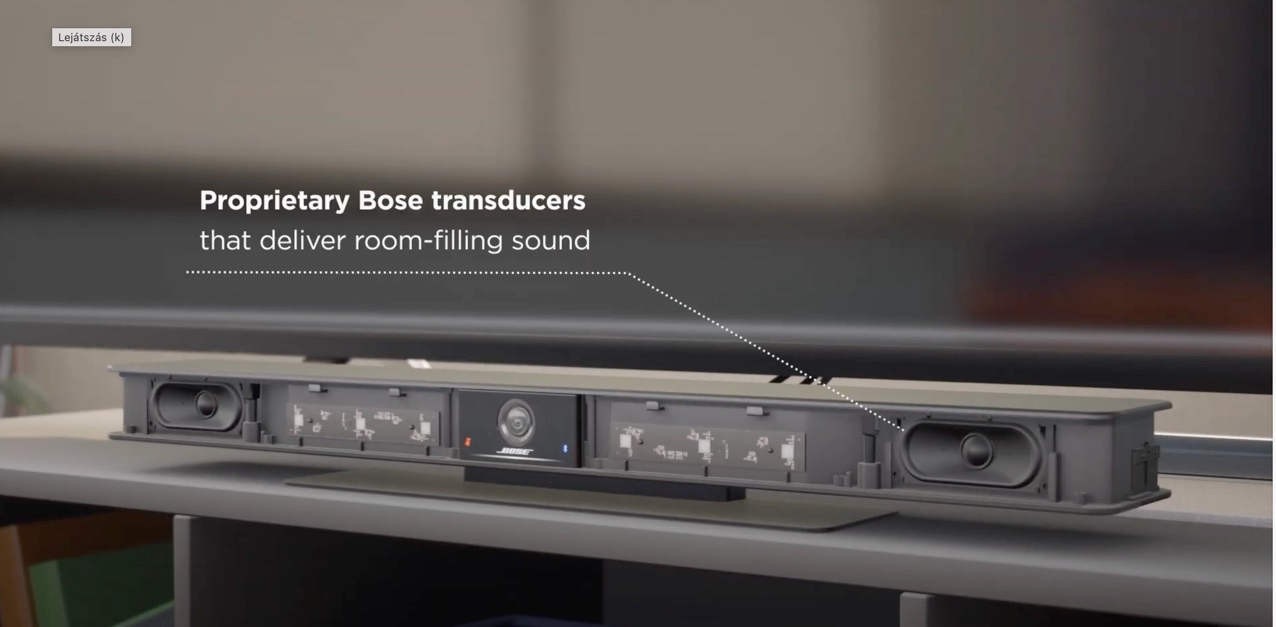

Speakers
Enclosure | Ported |
Number of Speakers | 2 |
Amplifier Power | 20 W per Channel |
Distortion | |
Maximum SPL | 89 dB SPL at 3.3' / 1 m, IEC 60268-5 |
Frequency Response | 85 Hz to 20 kHz (-10 dB) |
Video
Supported Resolutions | UHD 2160p (4K), 1080p, 720p, 960 x 480, 848 x 480, 640 x 480, 640 x 360, 432 x 240 (30 fps) |
Encoding | H.264, M-JPEG |

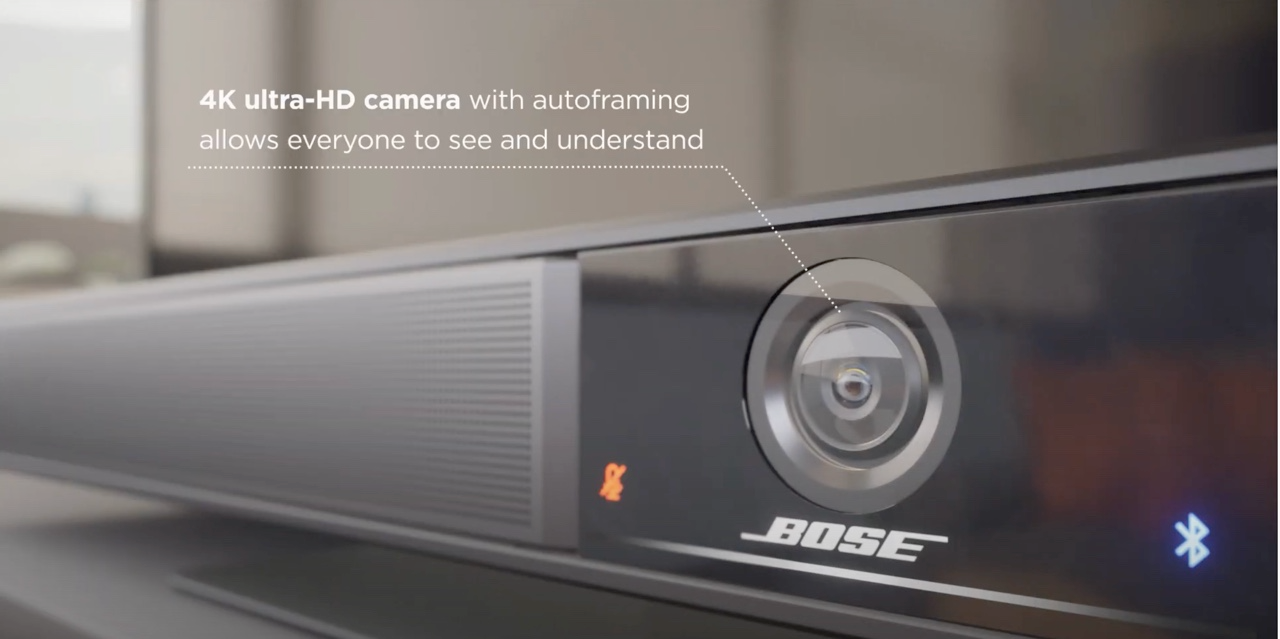

Camera
Field of View (FOV) | Diagonal: 120° Horizontal: 109° Vertical: 67° |
Sensor | 8 MP, 4K Resolution |
Digital Zoom | 5x |
Focus Distance | 1.6' / 0.5 m to Infinity |
UVC Video Class | v1.1 |
White Balance | Automatic |
Brightness Control | Automatic |
I/O
USB Connectors | 1 x USB 3.0 Type-C 1 x USB 3.0 Type-A |
HDMI Connector | 1 x HDMI 1.4 Type-D |
Audio Input | 1 x 1.8" / 3.5 mm TRS |
Ethernet | 1 x RJ45 |
GPI | 1 x 2-Pin Euroblock |
Communications
Ethernet Specifications | IEEE 802.3 |
Wi-Fi Standard | 802.11ac (Wi-Fi 5) |
USB Specifications | USB 3.0 UAC, UVC, HID |

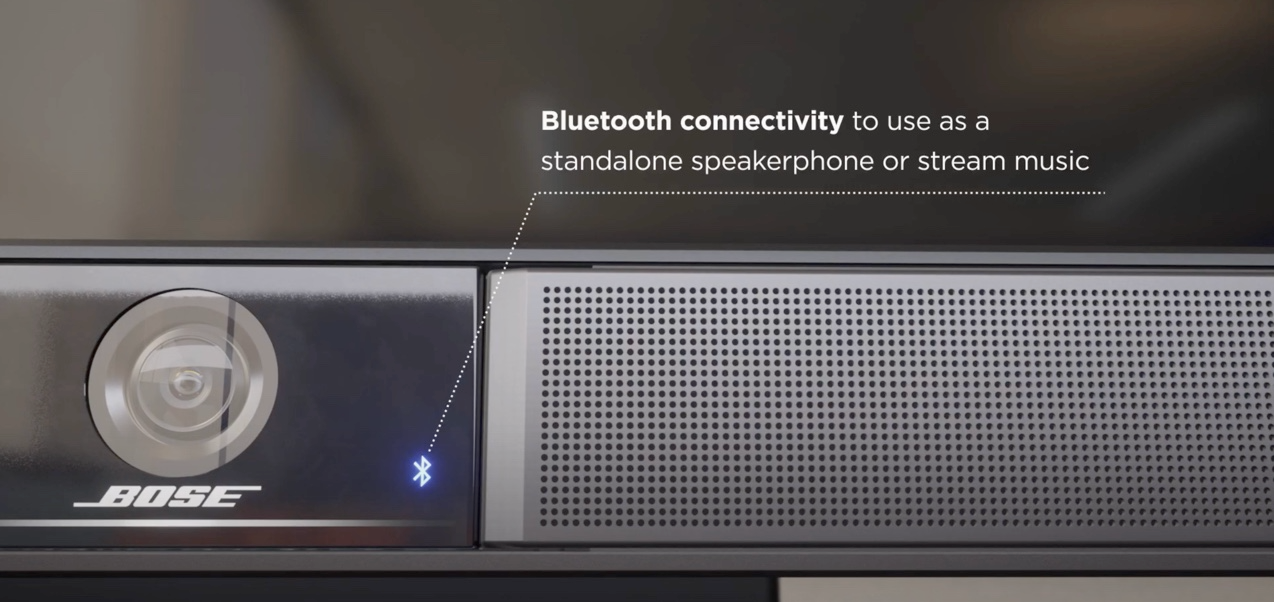

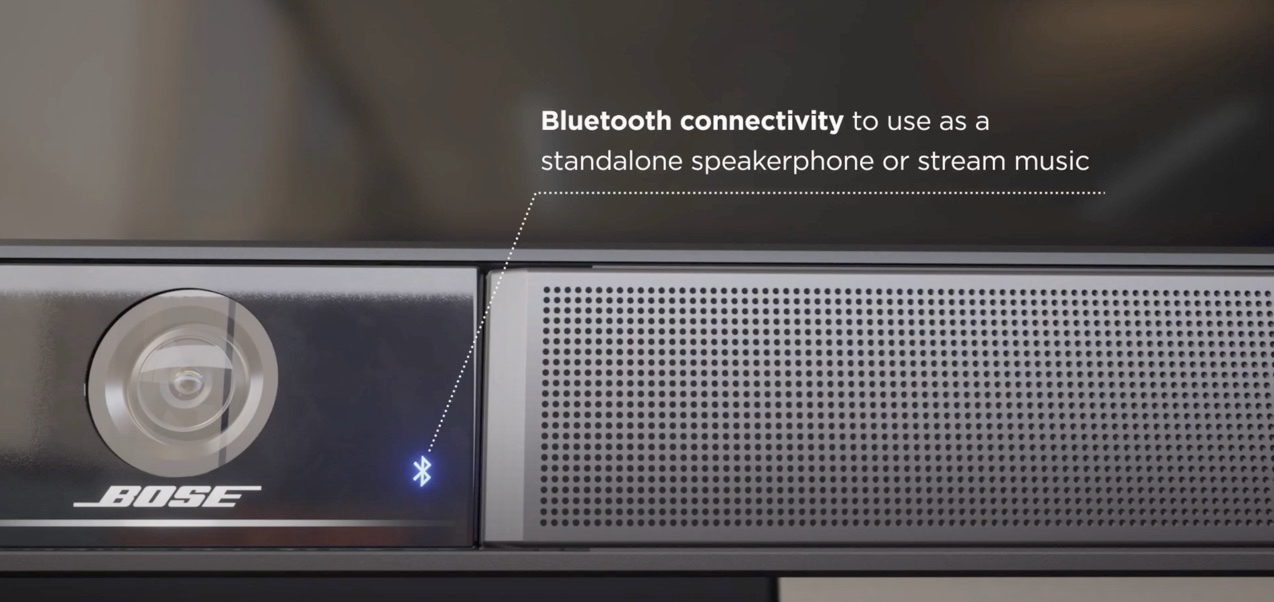

Bluetooth Version | 4.2 |
Bluetooth Profiles | HSP, A2DP, AVRCP, BLE |
Display | DisplayLink |
