SPECIFICATIONS:
Nureva HDL300 system
GENERAL:
Powerful system processors capable of executing 15,000 MIPS Continuous autocalibration
Acoustic echo cancellation
Built-in sound masking
Position-based gain control
Plug and play, no software or drivers required Integrated, multicolor status LED
Compatible with leading UC&C platforms Single cable, power over Ethernet
Primary audio source for video playback
SYSTEM INCLUDES:
Integrated microphone and speaker bar
Connect module, white
Connect module mounting bracket
Country specific, power cable 6' (2.5 m), black
Ethernet cable, CAT6 SSTP, 50' (15 m), Class 3 rated, black USB Type A-B cable, 10' (3 m), VW-1 rated, black
Infrared remote AAA batteries x2 Documentation kit
POWER
|
Power rating
| Universal switching 100-240V AC, 50-60Hz
|
Power consumption
| Standby <2.5W Operational <25W
|
MICROPHONES:
|
Number
| 12
|
Type
| Low-noise omnidirectional MEMS
|
Frequency response at 94 dB SPL
| 100Hz to 5 kHz
|
Total harmonic distortion (THD)
| 0.25% (typical)
|
ENVIRONMENTAL
|
System temperature
| 0° C to 40° C (32° F to 104° F) operating temperature, -20° C to 70° C (-4° F to 158° F) storage temperature, humidity 5–90% (noncondensing)
|
SPEAKERS:
|
Number
| 20W x2
|
Type
| 4" aluminum cone
|
Acoustic output (hardware capable)
| 91 dB-SPL @ 1 m
|
Total harmonic distortion (THD)
| <3%
|
Frequency response
| 50Hz to 16 kHz
|
Amplifier class
| D
|
WEIGHTS:
|
Integrated microphone and speaker bar
| 18.0 lb. (8.2 kg)
|
Connect module
| 1.5 lb. (0.7 kg)
|
Shipping
| 28.0 lb. (12.7 kg)
|

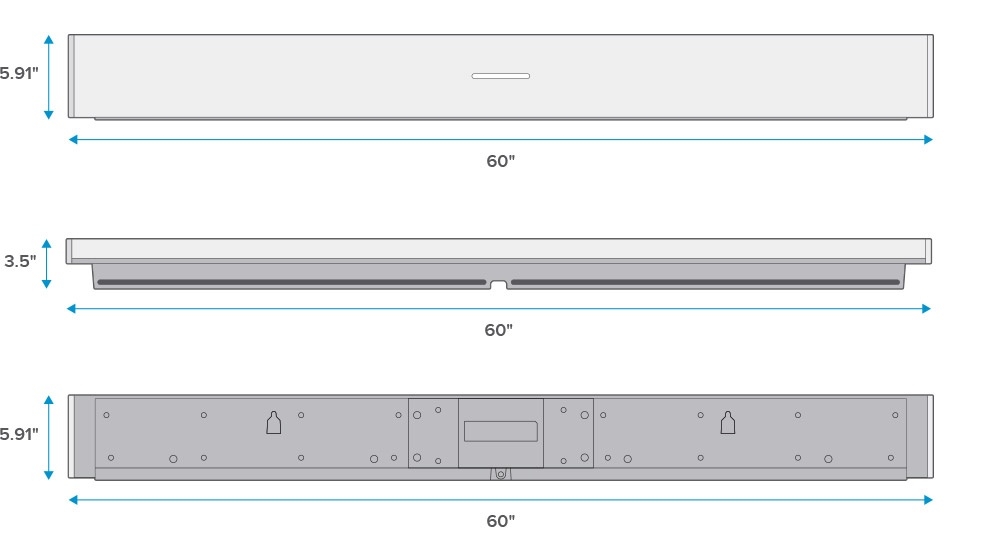

DIMENSIONS
|
Integrated microphone and speaker bar
| Width: 60.0" (152.4 cm) Height: 5.91" (14.9 cm) Depth: 3.5" (9.0 cm)
|
Connect module
| Width: 6.5" (16.5 cm) Height: 1.41" (3.6 cm) Depth: 4.31" (10.9 cm)
|
Shipping
| Width: 64.75" (164.4 cm) Height: 10.63" (27.0 cm) Depth: 9.5" (24.1 cm)
|
CONNECT MODULE
|
Interface to computer
| Single USB 2.0, type B
|
Auxiliary out
| 3.5 mm single-ended stereo jack x1
|
Auxiliary in
| 3.5 mm single-ended stereo jack x1
|
Connection to microphone and speaker bar
| RJ-45 x2
|
OPERATING
|
Room size
| Up to 25' x 25' (7.6 x 7.6 m)
|
Operating systems
| Windows® 7, Windows 8, Windows 10, Mac® OS X® 10.14 and 10.15 (Mojave and Catalina)
|
System setup
| Plug and play
|
CERTIFICATIONS
|
Electromagnetic compatibility
| FCC Part 15, Class A ICES-003, Class A, CISPR 32 (EN55032), Class A CISPR 24 (EN55024)
|
Safety
| UL 60950, CAN/CSA-C22.2 NO. 60950, IEC/EN60950, AS/NZS 60950
|
Environmental
| RoHS, WEEE, REACH
|
PART NUMBERS
HDL300-B, HDL300 audio conferencing system, black bar HDL300-W, HDL300 audio conferencing system, white bar
