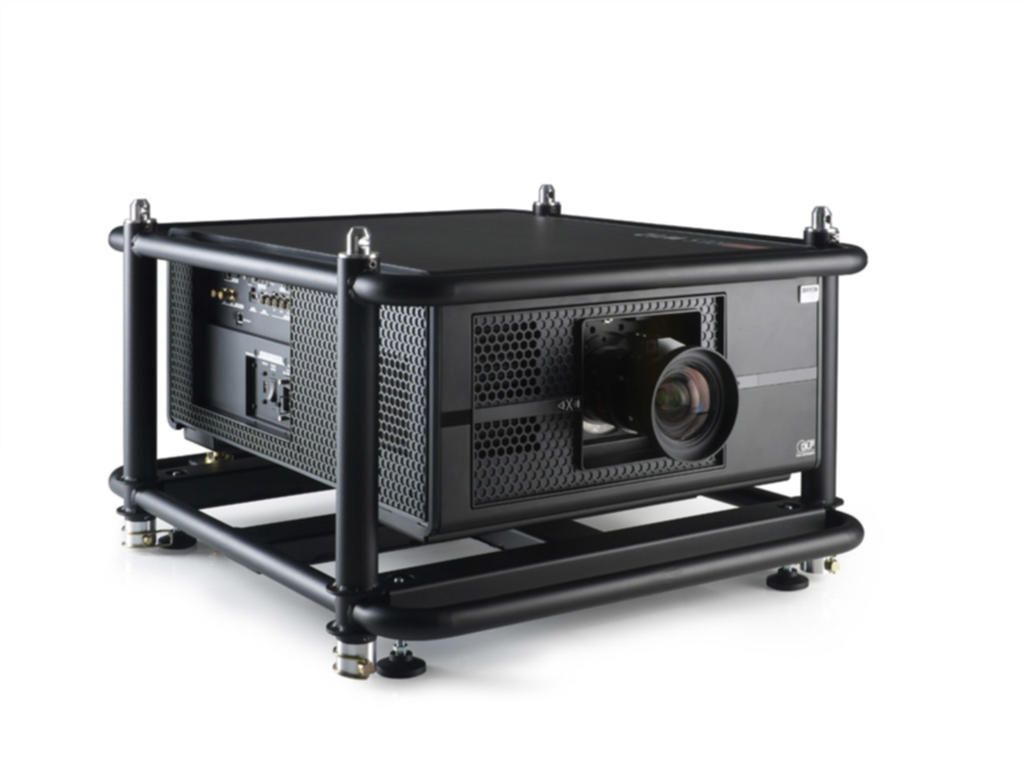

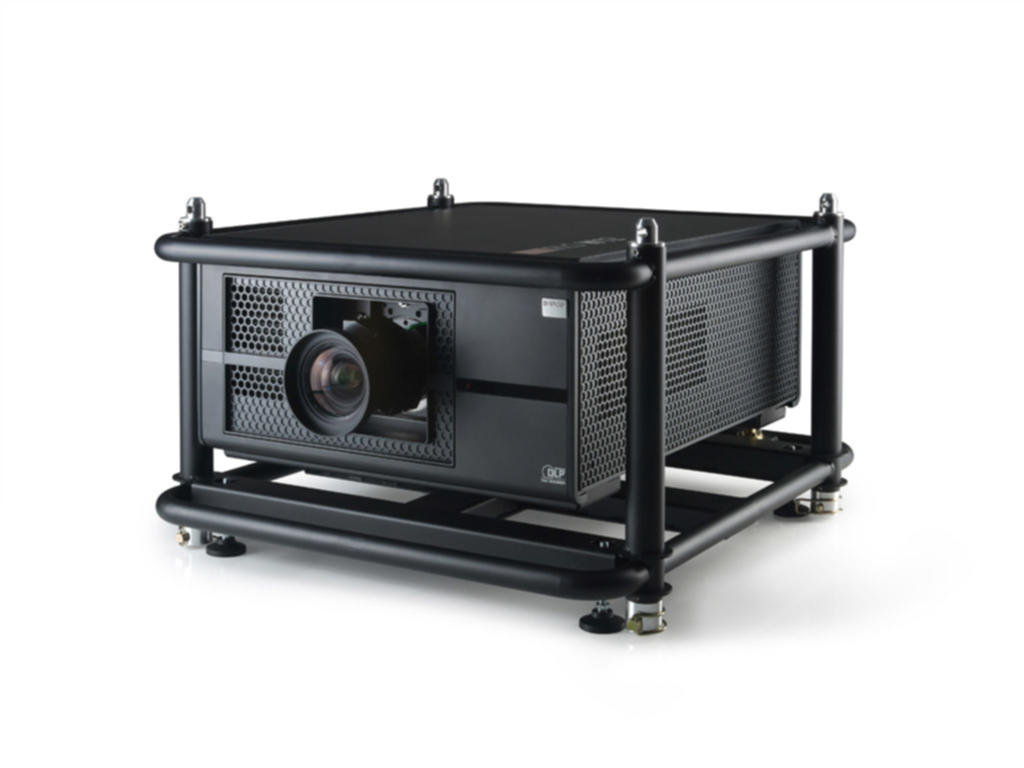

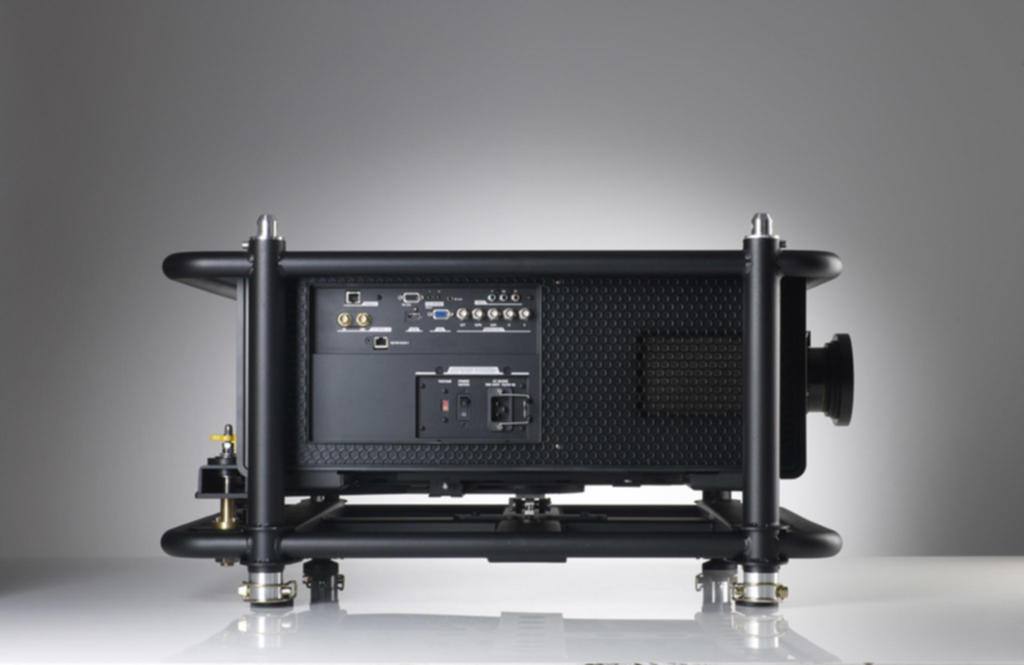

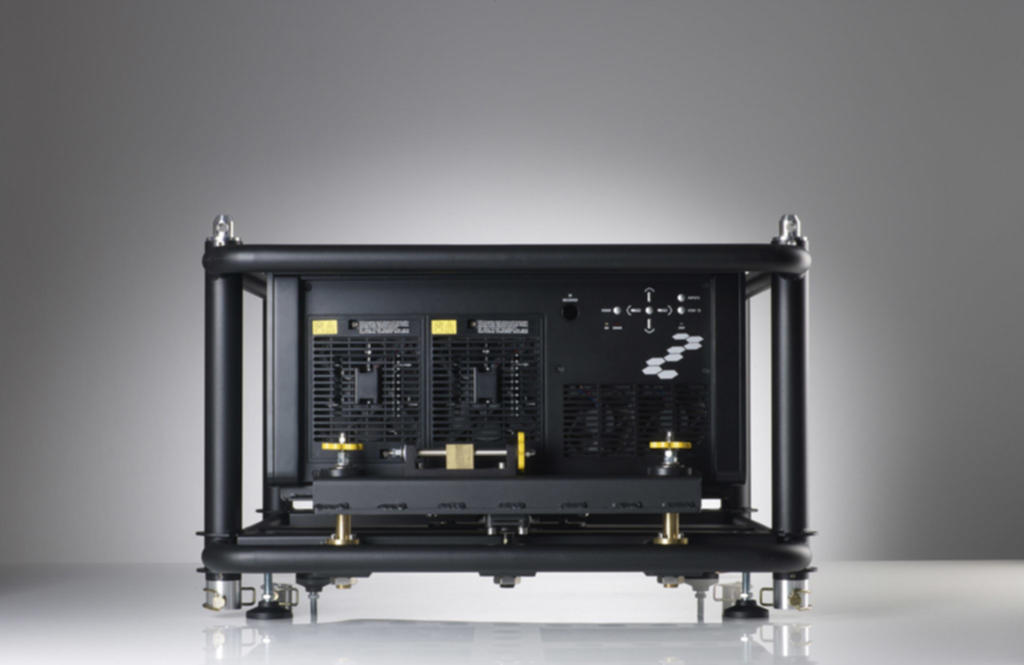

RLS-W12

12,000 lumens, WUXGA, 1-chip DLP projector
  • Cost-effective thanks to twin 465W NSH lamps
  • Video over a single Cat 5 cable (HDBaseTTM)
  • Extended warping and blending*

The RLS-W12 is a single-chip DLP projector that produces 12,000 center lumens light output and offers WUXGA (1,920 x 1,200) resolution, extended warping and blending, and HDBaseTTM technology to provide video over a single Cat 5 cable at a very low price point. Designed for fixed installation in museums, theaters and conference auditoriums, it’s also ideally suited for the hotel and exhibition rental market thanks to its rugged design, extended warping and blending functionalities*, and optional rental frame.

Cost-effective design

Offering high-brightness images, the cost-effective RLS-W12 features a rugged design that reduces noise and minimizes power consumption. Its twin 465W NSH lamps are not only very affordable they also provide a long lifetime. It operates at full brightness on a voltage range of 110V - 240V.

Simplified setup and installation

Featuring HDBaseTTM and BarcoLink, the RLS-W12 supports point-to-point transmission of video signals – up to WUXGA (1,920 x 1,200) at 60 Hz – from source to projector, over distances of more than 70 meters, via a single Cat 5 or BNC cable. By eliminating multiple expensive cables and connectors, it provides more simplicity, flexibility and lower installation costs.

Simple control

The RLS-W12 can be easily controlled via the wired or wireless remote control, the Android and iOS app, and the user-friendly Projector Toolset software.

* Some combinations will restrict adjustment range

Features

  • 12,000 lumens light output
  • 1-chip DLP technology
  • WUXGA (1,920 x 1,200) resolution
  • Video over a single Cat 5 cable thanks to standard HDBaseTTM
  • Extended warping and blending*
  • Perfect for fixed installations
  • Rental frame available
  • Low power consumption

Specifikációk

Projector type WUXGA 1-chip DLP digital projector
Technology 0.96' DMD™ x 1 CW:RGBYCW
Resolution 1,920 x 1,200
Brightness 12,000 center lumens / 11,000 ANSI lumens*
Contrast ratio 1,500:1
Brightness uniformity 90%
Aspect ratio 16:10
ScenergiX Horizontal and vertical edge blending
Lens type J type
Lenses 0.84-1.03:1; 1.25-1.48; 1.56-1.85:1; 1.85-2.4:1; 2.4-4.0:1; 4.0-7.0:1
Optical lens shift Vertical: +/- 100%; horizontal: +/- 30%
Vertical: +/- 75%; horizontal: +/- 25% (for 0.84-1.03:1 lens)
Color correction P7
Lamps 2x465W
Lamp lifetime 1,500 hours (typical) / 2,000 hours (maximum)
Lamp warranty 120 days, 500 hours
Sealed DLP™ core Standard
Optical dowser Standard
Picture-in-picture Up to two sources simultaneously
Orientation table - ceiling - vertical
WARP preset values + custom (RS232)
Integrated web server Yes
3D Passive circular polarized (optional)
Inputs 1 x HDMI (HDCP 1,3); HDBaseT; 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB;YUV); cinch (RGBs, YUV); HSDI/ 3G HDSDI /SDI
Input resolutions From NTSC up to UXGA (1,600 x 1,200), including HDTV (1,920 x 1,200)
Max. pixel clock 165Mhz
Software tools Projection Toolset + Android app + iOS app
Control Mini-jack + IR, RS232, 12v trigger
Network connection 10/100 base-T, RJ-45 connection
Power requirements 90-240V / 50-60Hz - 1,115W @ 240V, 1,150W @ 110V, STBY less than 2W
Noise level (typical at 25°C/77°F) 45 dB(A) norm, 40dB(A) eco
Operational ambient temperature 0-40°C / 32°-104°F
Operational humidity 0-90% (non condens)
Dissipation BTU max 3,804 BTU/h
Dimensions (WxLxH) 530 x 670 x 285 mm / 20.86 x 32.64 x 17.20 inches
Weight 34 kg (74.95 lbs)
Shipping Dimensions (LxWxH) 829 x 709 x 437 mm / 32.63 x 27.91 x 17.20 inches
Shipping Weight from Factory 41.5 kg (91.49 lbs)
Standard accessories Power cord, wireless remote control, HDMI to DVI adaptor
Certifications Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RHoS, WEE
Warranty 3 years standard, extra 2 years optional
+/- 10%
