● fully integrated mixer and scaler
● Completely modular - user installable signal choices
● Dedicated Preview output
● Two-image preview
● 4.3in LCD Touch Screen
● Integrated audio
● Transition effects
● PIP, OSD, DSK, BLEND, MASK, LOGO and STILL
● Sync to Genlock
● Pixel-to-pixel scaling

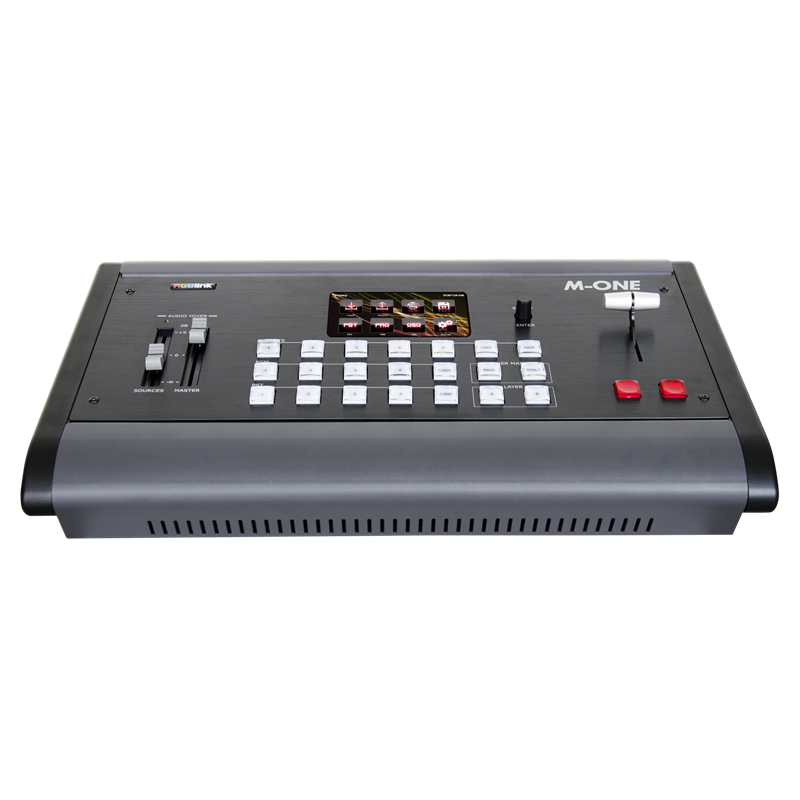

M1 makes video scaling and mixing more accessible and intuitive than ever before. Building on RGBlink technologies and innovations for a unique - almost "hand-held" - fully integrated All-in-One video processor, M1 redefines what a modern video processor can be with a host of on board features. Front and centre is a touch screen display providing easy access to features, with large illuminated buttons provide familar tactile controls.
Audio features are also built right into M1 which can output from embedded audio or externaml sources.
Much more than a vision mixer, M1 includes both cross-conversion and pixel to pixel scaling for modern displays, making this a comprehensive video solution for meeting roooms, schools and house of worship applicaitons..
| Input | Slots | 4 x Modular Input Slots |
| Options | HDMI | 3G-SDI | DVI | USB | |
| Output | Program (PGM) | 1 x Modular Input Slot Fitted standard with HDMI& SDI |
| Options | HDMI/SDI | IP Streaming | S9 Sender | |
| Preview (PVW) | 1 x HDMI | |
| Features | Layers | 2 |
| DSK/Chromakey | Yes (foreground layer) | |
| Blend | Yes (foreground layer) | |
| Mask | Yes (foreground layer) | |
| Transitions | Yes | |
| Performance | Input Resolutions | DVI/HDMI: SMPTE: 625@25/50 PAL | 525@29.97/59.94 NTSC 1080p@50/59.94/60 | 1080i@50/59.94/60 720p@50/59.94/60 VESA: 800x600@60 | 1024x768@60 | 1280x768@60 1280x1024@60 | 1600x1200@60 | 1920x1080@60 SDI: 480i | 576i | 720p@50/59.94/60 | 1080p@24/25/30/50/59.94/60 | 1080i@50/59.94/60 VGA: 800x600@60 | 1024x768@60 | 1280x1024@60 1440x900@60 | 1600x1200@60 CVBS: 480i PAL | 576i NTSC |
| Output Resolutions | Select from standard set or select user configurable SMPTE: 480i | 576i | 625@25/50 PAL | 525@29.97/59.94 NTSC |1080p@50/59.94/60 | 1080i@50/59.94/60 | 720p@50/59.94/60 VESA: 800x600@60 | 1024x768@60 | 1280x768@60 1280x1024@60 | 1600x1200@60 | 1920x1080@60 | |
| Genlock Y In | Black Burst: 480i | 576i | 720p@50/59.94 | 1080i@50/59.94 1080p@50/59.94/60 | 1080psf@23.98/24 | |
| Standards Supported | DVI: DVI-I HDMI: 1.3 VGA: VGA - UXGA SDI: SMPTE 425M (Level A and Level B) | SMPTE 424M SMPTE 292M | SMPTE 259M-C | DVB-ASI | |
| Grayscale Processing | 12bit | |
| Processing Engine | 10bit | |
| .Standard Connectors | Power | IEC |
| Comm. Module | Genlock 1 BNC LAN 1 RJ45 USB In 1 USB B Tally 1 DB9 F Audio In 2 RCA Audio Out 2 RCA | 1 3.5mm Stereo Jack | |
| Output Module | PVW 1 HDMI PGM 1 HDMI | 1 BNC | |
| Input Modules | 4 slots - range of signals available | |
| Power | Voltage | AC 85-264V 50/60Hz |
| Max Power | 65W | |
| Environmental | Temperature | -25°C - 55°C |
| Humidity | 10 - 90% RH | |
| Physical | Dimensions | 462mm x 280mm x 95mm (Device) 491mm x 434mm x 211mm (Packaged) |
| Weight | 5.5kg (Net Weight) 8.0kg (Packaged) |
